new F18 is a high-speed fingerprint recognition fingerprint access control attendance terminal based on the ZMM210-TFT platform

F18 high-speed fingerprint recognition fingerprint access control attendance terminal

The new F18 runs on the ZMM210-TFT platform, with a CPU main frequency of 1.0GHz, faster hardware platform speed, and optimized

fingerprint recognition speed and stable firmware performance.

Having flexible permission settings and convenient data management functions; Standard TCP/IP communication mode, supporting cross segment gateway connections.

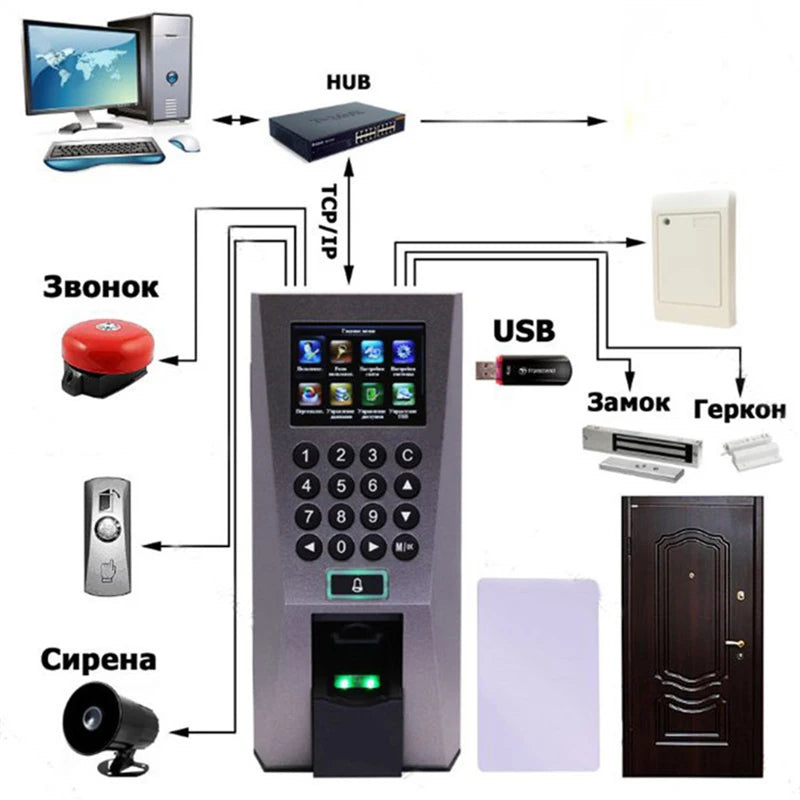

In terms of access control functions, it supports advanced access control, Wiegand in/out, and other functions.

Functional characteristics

* Completely retaining the original F18 appearance style;

* The running speed of the entire machine has been greatly improved;

* Standard TCP/IP communication and USB management;

* Optimize menu options and layout them reasonably;

* Add dismantling alarm sound (machine horn sounds) and set switch in the menu.

Technical dog parameters

Model: New F18

User capacity: 5000

Fingerprint capacity: 3000 pieces

Card Capacity: 5000 (Optional) ID/IC/HID Prox/HID icclass card

Record capacity: 100000 records

Communication methods: TCP/IP, RS485/232

Other features: advanced ban, wiegand in/out

Operating temperature: 0 ℃ -45 ℃

Operating humidity: 20% -80%

Power specification: DC12V 3A

Product size: 182.9mm * 80.14mm * 42.1mm
